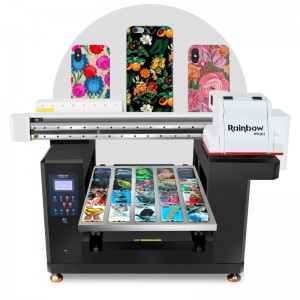

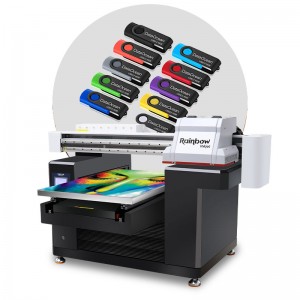

Nano 7 A2 UV Flatbed Printer
1. Double Hiwin linear guideways
Nano 7 has 2pcs of Hiwin linear guideways on its X-axis and another 2pcs on Y-axis.(Most other A2 uv printers has only 1pcs of guideway on X-axis).
This brings better stability in carriage and vacuum table movement, better printing accuracy, and longer machine lifespan.
2. 4pcs of thick ball screws
Nano 7 A2 UV printer has 4pcs thick ball screws on Z-axis, making the up-and-down movement of the platform smooth and fast, which also making it possible to have a stunning 24cm(9.4in) print height(good for printing suitcases).
The 4pcs of ball screw also makes sure that the platform is stable and level, which helps secure the printing resolution.
3. Thick aluminum suction table
Full aluminum suction platform has equipped with strong air fans, the surface is specially treated to be anti-corrosion and anti-scratch.
The suction table plug is at the back of the printer, you can also find the on/off switch in the front panel.
4. German Igus cable carrier
Imported from German, the cable carrier runs smoothly and quietly, it protects the ink tubes and cables during the printer carriage movement, and it has long lifespan.
5. Printhead lock sliding lever
The newly invented device is a mechanical structure for locking the printheads and sealing them tightly from drying and clogging.
When the carriage returns to the cap station, it hits the lever which pulls up the printhead caps. By the time the carriage brings the lever to the right limit, the printheads will also be fully sealed by the caps.
6. Low Ink alarm system
8 lights for 8 kinds of ink make sure you will notice the ink shortage when it does, the ink level sensor is placed inside the bottle so it can detect accurately.
7. 6 colors+White+Varnish
CMYKLcLm+W+V ink system now has Lc and Lm 2 extra colors to improve the color accuracy, making the printed result even sharper.
8. Front panel
The front panel has the basic control functions, like on/off switch, making the platform up and down, moving the carriage right and left and doing test print, etc.
9. Carraige plate temperature controler
It's a compact device inside the printer carriage that serves to 1)heat the metal carriage bottom plate and 2)display the real time temperature of the carriage bottom plate.
10. Waste ink bottle
The waste ink bottle is simi-transparent, so you can see the liquid level of the waste ink and clean it when necessary.
11. UV LED lamp power knobs
There are two UV LED lamps in Nano 7 for color+white and varnish respectively. Thus we designed two UV lamp wattage controlers. With them, you can adjust the wattage of the lamps according to your jobs' requirement.
For example, if you need to print heat-sensitive materials like film A&B(for stickers), you might want to turn down the lamp wattage to prevent it from altering its shape because of the heat.
12. Aluminum Rotary device
Nano 7 also supports rotary printing with the help of the rotary device. It can handle three kinds of rotary products: the bottle with a handle like mug, the bottle without a handle like normal water bottle, and the tapered bottle like tumbler(need an extra small gadget).
It's convenient to install and uninstall the device, just need to put it on the platform and the magnet will fix the device in place. Then we need to switch the print mode to rotary and we'd be able to do the print just as usual.
Optional items
UV curing hard ink(soft ink available)
UV DTF B film(one set come with A film)
Pen printing tray
Coating brush
Cleaner
Laminating machine

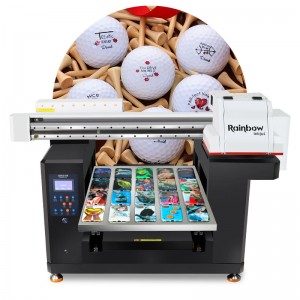

Golfball printing tray
Coatings(metal, acrylic, PP, glass, ceramic)
Gloss(varnish)
Print head TX800(I3200 optional)
Phone case printing tray
Spare parts package
Packging and Shipping
Package info
The machine would be packed in a solid wooden crate for international shipping, suitable for sea, air, and express transportation.
Machine size: 97*101*56cm; Machine weight: 90kg
Package size: 118*116*76cm; package weight: 135KG
Shipping options
Shipping by sea
- To port: cost the least, available in nearly all countries and areas, usually take 1 month to arrive.
- Door-to-door: economical overall, available in the US, EU, and south-east Asia, usually takes 45 days to arrive for the EU and the US, and 15 days for south-east Asia. In this way, all costs are covered including tax, customs, etc.
Shipping by air
- To port: available in nearly all countries, usually take 7 workdays to arrive.
Shipping by Express
- Door-to-door: available in nearly all countries and areas, and takes 5-7 days to arrive.
Sample Service
We offer a sample printing service, meaning we can print a sample for you, record a video in which you can see the whole printing process, and capture high-resolution images to showcase the sample details, and will be done in 1-2 workdays. If this interests you, please submit an inquiry, and if possible, provide the following information:
- Design(s): Feel free to send us your own designs or allow us to utilize our in-house designs.
- Material(s): You may send the item you wish to have printed or inform us of the desired product for printing.
- Printing specifications (optional): If you have unique printing requirements or seek a particular printing result, don't hesitate to share your preferences. In this instance, it's advisable to provide your own design for improved clarity regarding your expectations.
Note: If you require the sample to be mailed, you will be responsible for postage fees.
FAQ:
Q1:What materials can UV printer print?
A:UV printer can print almost all kinds materials, such as phone case, leather, wood,plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc.
Q2:Can UV printer print embossing 3D effect?
A:Yes, it can print embossing 3D effect, contact us for more information and printing videos
Q3:Can A2 uv flatbed printer do rotary bottle and mug printing?
A:Yes, both bottle and mug with handle can be printed with the help of rotary printing device.
Q4:Does printing materials must be sprayed a pre-coating?
A:Some material need pre-coating, such as metal, glass, acrylic for make the color anti-scratch.
Q5:How can we start to use the printer?
A:We will send the detailed manual and teaching videos with the package of the printer before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions, and if any question unclarified, our technical support online by teamviewer and video call will be help.
Q6:What about the warranty?
A:We have 13 months warranty and lifelong technical support, not include consumables like print head and ink
dampers.
Q7:What's the printing cost?
A:Usually,1 square meter need cost about $1 printing cost with our good quality ink.
Q8:Where can I buy the spare parts and inks?
A:All spare parts and ink will be available from us during the whole lifespan of printer, or you can buy at local.
Q9:What about maintenance of the printer?
A:The printer has auto-cleaning and auto keep wet system, each time before power off machine, please do a normal cleaning so that keep print head wet. If you don't use the printer more than 1 week, it’s better to power on machine 3 days later to do a test and auto clean.
| Name | Nano 7 | ||
| Printhead | Three Epson DX8/XP600 | ||
| Resolution | 720dpi-2880dpi | ||
| Ink | Type | UV LED Curable Ink UV | |
| Package size | 500ml per bottle 500ml | ||
| Ink supply system | CISS Built Inside Within Ink Bottle |
||
| Consumption | 9-15ml/sqm 9-15ml | ||
| Ink stirring system | Available | ||
| Maximum printable area(W*D*H) | Horizontal | 50*70cm (19.7*27.6 inches) | |
| Vertical | Substrate24cm (9.4 inches) /Rotary12cm (4.7 inches) | ||
| Media | Type | Metal, Plastic, Glass, Wood, Acrylic, Ceramics, PVC, Paper, TPU, Leather, Canvas, etc. | |
| Weight | ≤10kg | ||
| Media (object) holding method | Vacuum table | ||
| Software | RIP | UltraPrint | |
| Control | printDream | ||
| Format | TIFF(RGB&CMYK)/BMP/PDF/EPS/JPEG… | ||
| System | Windows XP/Win7/Win8/win10 | ||
| Interface | USB 2.0 | ||
| Language | Chinese/English | ||
| Power | Requirement | 50/60HZ 220V(±10%) ＜5A | |
| Consumption | 500W | ||
| Dimension | Machine size | 100*127*80cm | |
| Packing size | 114×140×96cm | ||
| Net Weight/ Gross Weight | 110KG/150KG | ||
