Nano 9 A1 6090 UV Printer

Short Description:

  • Print height: Substrate  16cm(6″) /Rotary 12cm(5″)
  • Print size: 60cm*90cm(23.6″*35.4″;A1)
  • Print resolution: 720dpi-2880dpi (6-16passes)
  • UV ink: Eco type for cmyk plus white,vanish, primer
  • Applications: For custom phone cases,metal, tile, slate, wood, glass, plastic, pvc decor, special paper, canvas art, leather, acrylic, bamboo and more


Product Overview

Specifications

Videos

Product Tags

6090-uv-printer (2)
uv-flatbed-printer
1-6090-uv-printer-guideways

1. Double Hiwin linear guideways

Nano 9 has 2pcs of Hiwin linear guideways on its X-axis, 2pcs on Y-axis, and 4pcs on Z-axis, makes it a total of 8pcs of linear guideways.

In comparison, most other A1 uv printers has only 3-7pcs of guideways in total, and not necessarily linear ones.

This brings better stability in printer running, thus better printing accuracy, and longer machine lifespan.

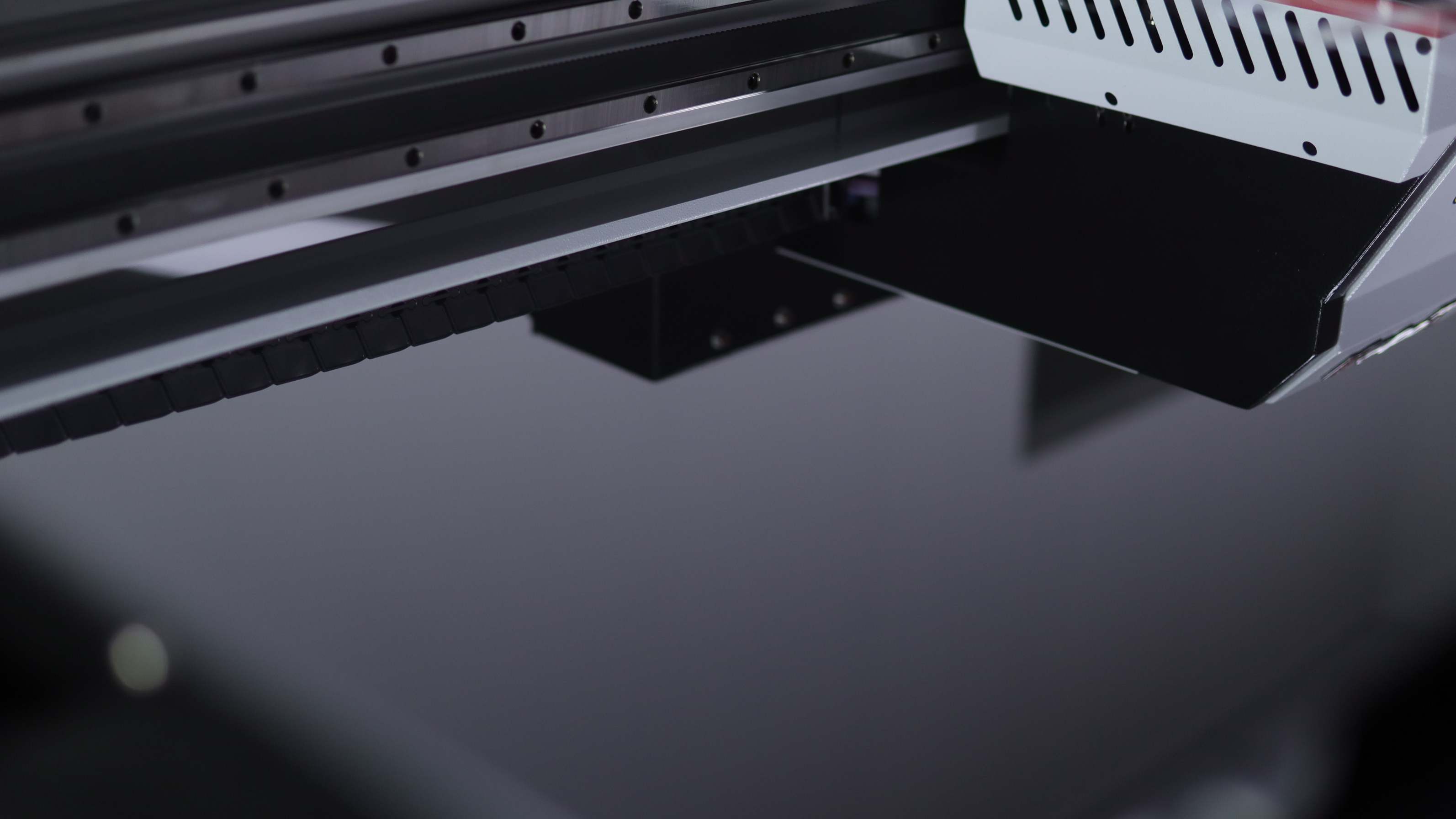

2. Thick glass/aluminum vacuum table

The standard Nano 9 is with thick glass table, anti-scratch and anti-corrosion. You can print test bar, or guide lines on it without the worry that it might not be easy to clean.

It also supports full aluminum suction platform which goes with strong air fans, the surface of the aluminum is specially treated to be anti-corrosion and anti-scratch.

2-a1-6090-uv-flatbed-printer-platform
3-a2 6090 uv printer (2)

3. German Igus cable carrier

Imported from German, the cable carrier runs smoothly and quietly, it protects the ink tubes and cables during the printer carriage movement, and it has long lifespan.

4. Printhead lock sliding lever

The newly invented device is a mechanical structure for locking the printheads and sealing them tightly from drying and clogging.

When the carriage returns to the cap station, it hits the lever which pulls up the printhead caps. By the time the carriage brings the lever to the right limit, the printheads will also be fully sealed by the caps.

4-Cap station for 3 heads4-Cap station for 3 heads
5-a2 5070 uv printer (5)

5. Low Ink alarm system

8 lights for 8 kinds of ink make sure you will notice the ink shortage when it does, the ink level sensor is placed inside the bottle so it can detect accurately.

6. 6 colors+White+Varnish

CMYKLcLm+W+V ink system now has Lc and Lm 2 extra colors to improve the color accuracy, making the printed result even sharper.

Feel free to ask for the color test print from our sales to examine the result.



6-a2 5070 uv printer (6)
7-nano9-6090-uv

7. Front panel

The front panel has the basic control functions, like on/off switch, making the platform up and down, moving the carriage right and left and doing test print, etc. You can operate here even without the computer.

9. Waste ink bottle

The waste ink bottle is simi-transparent, so you can see the liquid level of the waste ink and clean it when necessary.



waste ink bottle 6090 uv printer
uv led lamp knob

10. UV LED lamp power knobs

There are two UV LED lamps in Nano 9 for color+white and varnish respectively. Thus we designed two UV lamp wattage controlers. With them, you can adjust the wattage of the lamps according to your jobs' requirement.

For example, if you need to print heat-sensitive materials like film A&B(for stickers), you might want to turn down the lamp wattage to prevent it from altering its shape because of the heat.

11. Aluminum Rotary device

Nano 9 also supports rotary printing with the help of the rotary device. It can handle three kinds of rotary products: the bottle with a handle like mug, the bottle without a handle like normal water bottle, and the tapered bottle like tumbler(need an extra small gadget).

It's convenient to install and uninstall the device, just need to put it on the platform and the magnet will fix the device in place. Then we need to switch the print mode to rotary and we'd be able to do the print just as usual.

11. Aluminum Rotary device
embossed effect 3d


12. Embossing/Varnish supported

Nano 9 is capable of realizing the above special prints: embossing, varnish/glossy. And we have the respective video tutorials to show you step by step.

FAQ:



Q1:What materials can UV printer print?

A:UV printer can print almost all kinds materials, such as phone case, leather, wood,plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc.

Q2:Can UV printer print embossing 3D effect?
A:Yes, it can print embossing 3D effect, contact us for more information and printing videos

Q3:Can A3 uv flatbed printer do rotary bottle and mug printing?

A:Yes, both bottle and mug with handle can be printed with the help of rotary printing device.
Q4:Does printing materials must be sprayed a pre-coating?

A:Some material need pre-coating, such as metal, glass, acrylic for make the color anti-scratch.

Q5:How can we start to use the printer?

A:We will send the detailed manual and teaching videos with the package of the printer before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions, and if any question unclarified, our technical support online by teamviewer and video call will be help.

Q6:What about the warranty?

A:We have 13 months warranty and lifelong technical support, not include consumables like print head and ink
dampers.

Q7:What's the printing cost?

A:Usually,1 square meter need cost about $1 printing cost with our good quality ink.
Q8:Where can I buy the spare parts and inks?

A:All spare parts and ink will be available from us during the whole lifespan of printer, or you can buy at local.

Q9:What about maintenance of the printer?

A:The printer has auto-cleaning and auto keep wet system, each time before power off machine, please do a normal cleaning so that keep print head wet. If you don't use the printer more than 1 week, it’s better to power on machine 3 days later to do a test and auto clean.



uv-flatbed-printer

uv-flatbed-printer

6090-uv-printer



  • Previous:
  • Next:

  • Name
    Nano 9
    Printhead
    2-4pcs Epson DX10/XP600
    Resolution
    720dpi-2880dpi

    Ink

    Type
    UV LED Curable Ink
    Package volume
    500ml per bottle
    Ink supply system
    CISS Built Inside Withi Ink Bottle
    Consumption
    9-15ml/sqm
    Ink stirring system
    Available

    Maximum printable area

    Horizontal
    60*90cm(24*37.5inch;A1)
    Vertical
    substrate 16cm(6inches) /rotary 12cm(5inches)

    Media

    Type
    Metal, Plastic, Glass, Wood, Acrylic, Ceramics, PVC, Paper, TPU, Leather, Canvas, etc.
    Weight
    ≤20kg
    Media (object) holding method
    Glass table/
    Aluminum vacuum table

    Software

    RIP
    Photoprint/Ultraprint
    Control
    Print Dream
    format
    TIFF(RGB&CMYK)/BMP/ PDF/EPS/JPEG…
    System
    Windows XP/Win7/Win8/win10
    Interface
    USB 3.0
    Language
    Chinese/English

    Power

    Requirement
    50/60HZ 220V(±10%) <5A
    Consumption
    500W

    Dimension

    Assembled
    1130*1400*720mm
    Operational
    1530*1450*850mm
    Weight
    135KG/180KG
