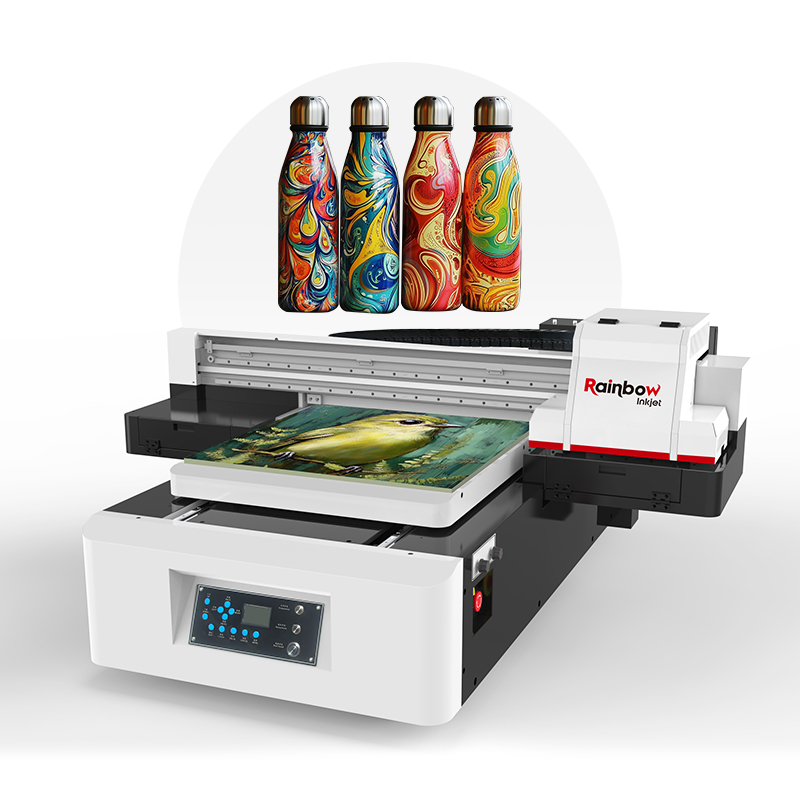

Nano 9 A1 6090 UV Printer

Short Description:



Translator



Translator

Nano 9 A1 6090 UV flatbed printer provides a quality option with a standard A1 printing size and considerable print speed. With a max printing size of 35.4″(90cm) in length and 23.6”(60cm) in width, it can directly print on metal, wood, pvc, plastic, glass, crystal, stone and rotary products. Varnish, matte, reverse print, fluorescence, bronzing effect are all supported. For customers who need only to print color in a fast speed, Nano 9 has the 4 print heads option which allows for fast printing with CMYK*2+W*2. Besides, Nano 9 supports direct to film printing and transfering to any materials, which makes it possible to customize curved and irregularly-shaped products. More importantly, Nano 9 supports vaccum suction table for printing soft materials like leather, film, soft pvc, making it much easier for positioning and non-tape printing. This model has helped many customers and are becoming more popular because of it’s industrial look, interior design and color performance.

  • Print height: Substrate  16cm(6″) /Rotary 12cm(5″)
  • Print size: 60cm*90cm(23.6″*35.4″;A1)
  • Print resolution: 720dpi-2880dpi (6-16passes)
  • UV ink: Eco type for cmyk plus white,vanish, primer
  • Applications: For custom phone cases,metal, tile, slate, wood, glass, plastic, pvc decor, special paper, canvas art, leather, acrylic, bamboo and more








Product Overview

Specifications

Videos

Customer Feedback

Product Tags

6090 uv flatbed (6)

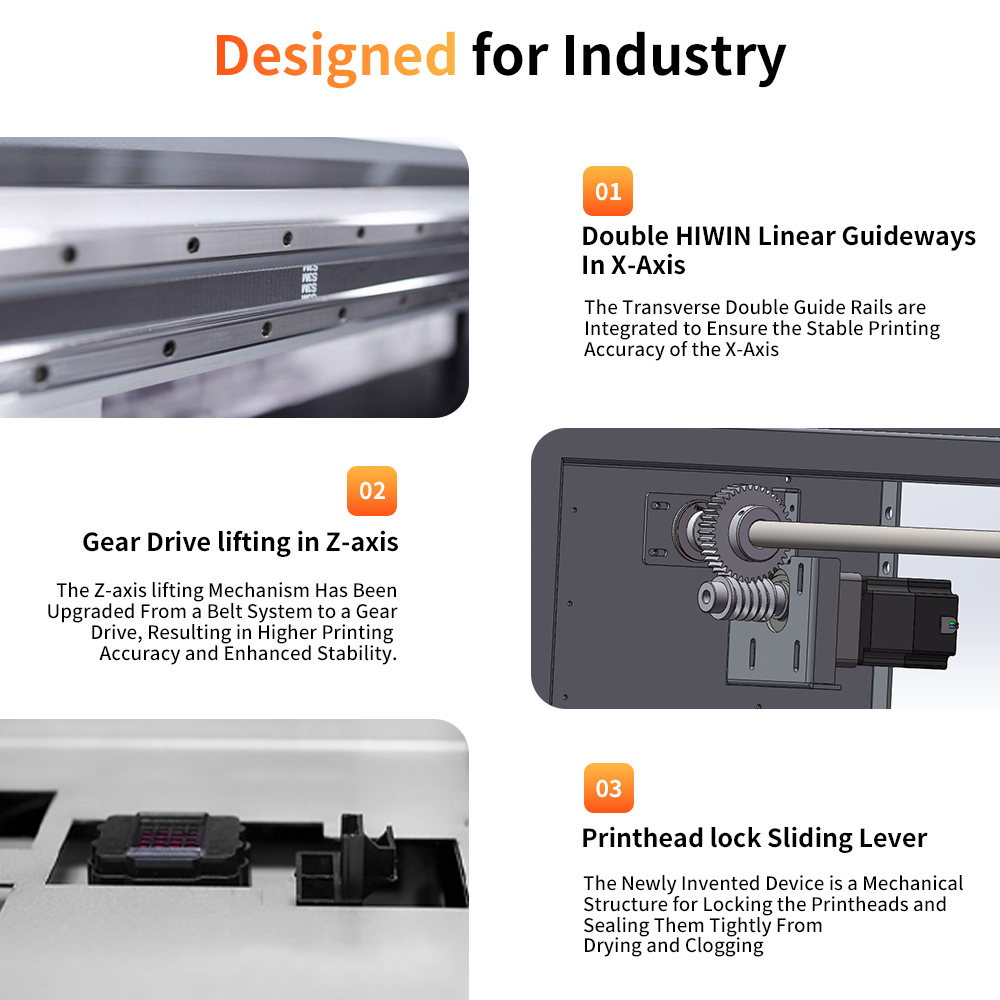

1. Double Hiwin linear guideways

Nano 9 has 2pcs of Hiwin linear guideways on its X-axis, 2pcs on Y-axis, and 4pcs on Z-axis, makes it a total of 8pcs of linear guideways.

In comparison, most other A1 uv printers has only 3-7pcs of guideways in total, and not necessarily linear ones.

This brings better stability in printer running, thus better printing accuracy, and longer machine lifespan.

1-6090-uv-printer-guideways

2. Thick aluminum vacuum table

The Nano 9 has a thick aluminum vacuum suction table coated with PTFE(Teflon), it's anti-scratch and anti-corrosion. You can print test bar, or guide lines on it without the worry that it might not be easy to clean.

The platform comes with strong air fans, suitable for printing UV DTF film and other flexible materials.

vacuum suction table function

3. German Igus cable carrier

Imported from German, the cable carrier runs smoothly and quietly, it protects the ink tubes and cables during the printer carriage movement, and it has long lifespan.

a2 5070 uv printer (2) 拷贝

4. Printhead lock sliding lever

This device is a mechanical structure for locking the printheads and sealing them tightly from drying and clogging. The stability is better than the electronic structure and it's much less likely to fail to protect the head.

When the carriage returns to the cap station, it hits the lever which pulls up the printhead caps. By the time the carriage brings the lever to the right limit, the printheads will also be fully sealed by the caps.

4-Cap station for 3 heads4-Cap station for 3 heads

5. Low Ink alarm system

8 lights for 8 kinds of ink make sure you will notice the ink shortage when it does, the ink level sensor is placed inside the bottle so it can detect accurately.

5-a2 5070 uv printer (5)

6. 6 colors+White+Varnish

CMYKLcLm+W+V ink system now has Lc and Lm 2 extra colors to improve the color accuracy, making the printed result even sharper.

Feel free to ask for the color test print from our sales to examine the result.

6-a2 5070 uv printer (6)

7. Front panel

The front panel has the basic control functions, like on/off switch, making the platform up and down, moving the carriage right and left and doing test print, etc. You can operate here even without the computer.

7-nano9-6090-uv

8. Waste ink bottle

The waste ink bottle is semi-transparent, so you can see the liquid level of the waste ink and clean it when necessary.

waste ink bottle 6090 uv printer

9. UV LED lamp power knobs

There are two UV LED lamps in Nano 9 for color+white and varnish respectively. Thus we designed two UV lamp wattage controlers. With them, you can adjust the wattage of the lamps according to your jobs' requirement.

For example, if you need to print heat-sensitive materials like film A&B(for stickers), you might want to turn down the lamp wattage to prevent it from altering its shape because of the heat.

uv led lamp knob

10. Aluminum Rotary device

Nano 9 also supports rotary printing with the help of the rotary device. It can handle three kinds of rotary products: the bottle with a handle like mug, the bottle without a handle like normal water bottle, and the tapered bottle like tumbler(need an extra small gadget).

It's convenient to install and uninstall the device, just need to put it on the platform and the magnet will fix the device in place. Then we need to switch the print mode to rotary and we'd be able to do the print just as usual.

rotary device

11. Base frame support

The Nano 9 base frame is a critical addition for UV flatbed printers, offering:

  • Stability: It significantly reduces printer shaking during operation, thereby ensuring optimal print quality.
  • Mobility: Equipped with lockable wheels, it allows for easy relocation of the printer without compromising stability during use.

base frame


12. Embossing/Varnish supported

Nano 9 is capable of realizing the above special prints: embossing, varnish/glossy. And we have the respective video tutorials to show you step by step.

embossed effect 3d

One Machine, Two Solutions

①UV Direct Printing Solution

UV DIRECT PRINTING PROCESS

Direct Printing Samples

phone case uv printer- (7)

Phone Case

glass

Glass award

acrylic-UV-print-1

Acrylic sheet

PVC-cardzeropoint76mm

Business/gift card

pen-printed

Plastic pens

IMG_2948

Leather

pocker chip

Poker chips

musicbox

Wood music box

②UV Direct to Film Transfer Solution

UV DTF

UV DTF Samples

1679900253032

Printed film(ready to use)

can

Frosted glass can

Cylinder

uv dtf sticker

Printed film(ready to use)

1679889016214

Paper can

Printed film(ready to use)

helmet

Helmet

未标题-1

Balloon

Mug

helmet

Helmet

2 (6)

Plastic tube

Plastic tube

Optional items

uv curing ink hard soft

UV curing hard ink(soft ink available)

uv dtf b film

UV DTF B film(one set come with A film)

A2-pen-pallet-2

Pen printing tray

coating brush

Coating brush

cleaner

Cleaner

laminating machine

Laminating machine

golfball tray

Golfball printing tray

coating cluster-2

Coatings(metal, acrylic, PP, glass, ceramic)

Glossy-varnish

Gloss(varnish)

tx800 printhead

Print head TX800(I3200 optional)

phone case pallet

Phone case printing tray

spare parts package-1

Spare parts package

Packging and Shipping

Package info

package info

The machine would be packed in solid wooden crate for international shipping, suitable for sea, air and express transportation.

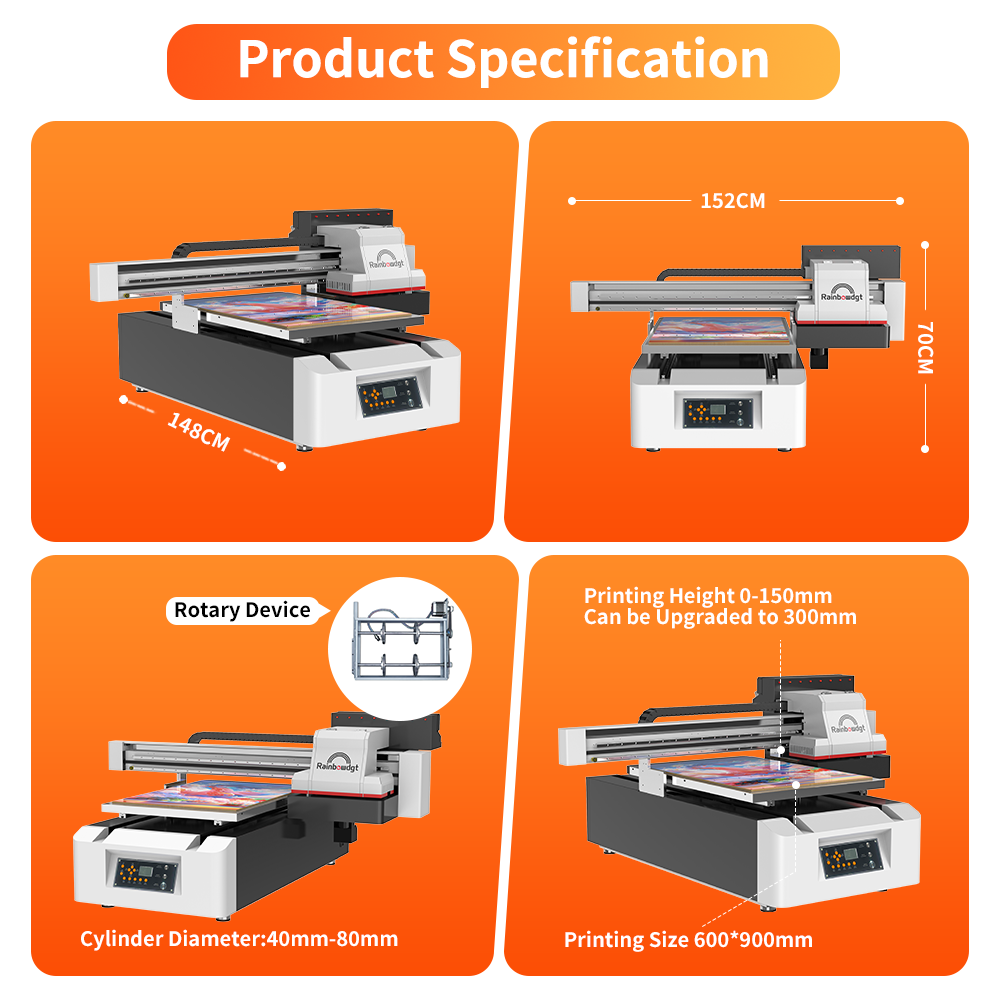

Machine size: 113×140×72cm; Machine weight: 135kg

Package size: 153×145×85cm; package weight: 213KG

Shipping options

shipping options

Shipping by sea

  • To port: cost the least, available in all countries and areas, usually take 1 month to arrive.
  • Door-to-door: economical overall, available in the US, EU, and south-east Asia, usually takes 45 days to arrive for the EU and the US, and 15 days for south-east Asia. In this way, all costs are covered including tax, customs, etc.

Shipping by air

  • To port: available in all countries, usually take 7 workdays to arrive.
  • Door to door: usually it's express, available in all countries and areas, and takes 5-7days to arrive



Sample Service

We offer a sample printing service, meaning we can print a sample for you, record a video in which you can see the whole printing process, and capture high-resolution images to showcase the sample details, and will be done in 1-2 workdays. If this interests you, please submit an inquiry, and if possible, provide the following information:

  1. Design(s): Feel free to send us your own designs or allow us to utilize our in-house designs.
  2. Material(s): You may send the item you wish to have printed or inform us of the desired product for printing.
  3. Printing specifications (optional): If you have unique printing requirements or seek a particular printing result, don't hesitate to share your preferences. In this instance, it's advisable to provide your own design for improved clarity regarding your expectations.

Note: If you require the sample to be mailed, you will be responsible for postage fees.

FAQ:



Q1:What materials can UV printer print?

A:UV printer can print almost all kinds materials, such as phone case, leather, wood,plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc.

Q2:Can UV printer print embossing 3D effect?
A:Yes, it can print embossing 3D effect, contact us for more information and printing videos

Q3:Can A3 uv flatbed printer do rotary bottle and mug printing?

A:Yes, both bottle and mug with handle can be printed with the help of rotary printing device.
Q4:Does printing materials must be sprayed a pre-coating?

A:Some material need pre-coating, such as metal, glass, acrylic for make the color anti-scratch.

Q5:How can we start to use the printer?

A:We will send the detailed manual and teaching videos with the package of the printer before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions, and if any question unclarified, our technical support online by teamviewer and video call will be help.

Q6:What about the warranty?

A:We have 13 months warranty and lifelong technical support, not include consumables like print head and ink
dampers.

Q7:What's the printing cost?

A:Usually,1 square meter need cost about $1 printing cost with our good quality ink.
Q8:Where can I buy the spare parts and inks?

A:All spare parts and ink will be available from us during the whole lifespan of printer, or you can buy at local.

Q9:What about maintenance of the printer?

A:The printer has auto-cleaning and auto keep wet system, each time before power off machine, please do a normal cleaning so that keep print head wet. If you don't use the printer more than 1 week, it’s better to power on machine 3 days later to do a test and auto clean.




uv-flatbed-printer


uv-flatbed-printer

6090-uv-printer

6090 uv flatbed (4)


  • Previous:
  • Next:

  •

    Translator



    Translator
    Name
    Nano 9
    Printhead
    3pcs Epson DX8
    Resolution
    720dpi-2880dpi

    Ink

    Type
    UV LED Curable Ink
    Package volume
    500ml per bottle
    Ink supply system
    CISS Built Inside Withi Ink Bottle
    Consumption
    9-15ml/sqm
    Ink stirring system
    Available

    Maximum printable area

    Horizontal
    60*90cm(24*37.5inch;A1)
    Vertical
    substrate 16cm(6inches, upgradable to 30cm/11.8inches) /rotary 12cm(5inches)

    Media

    Type
    Metal, Plastic, Glass, Wood, Acrylic, Ceramics, PVC, Paper, TPU, Leather, Canvas, etc.
    Weight
    ≤20kg
    Media (object) holding method
    Aluminum vacuum table

    Software

    RIP
    RIIN
    Control
    BetterPrinter
    format
    TIFF(RGB&CMYK)/BMP/ PDF/EPS/JPEG…
    System
    Windows XP/Win7/Win8/win10
    Interface
    USB 3.0
    Language
    Chinese/English

    Power

    Requirement
    50/60HZ 220V(±10%) <5A
    Consumption
    500W

    Dimension

    Assembled
    1130*1400*720mm
    Operational
    1530*1450*850mm
    Weight
    135KG/180KG
