How to Print MDF?

What's MDF?

MDF, which stands for medium-density fiberboard, is an engineered wood product made from wood fibers bonded together with wax and resin. The fibers are pressed into sheets under high temperature and pressure. The resulting boards are dense, steady, and smooth.

raw mdf board for cut and print_

MDF has several beneficial properties that make it well-suited for printing:

- Stability: MDF has very little expansion or contraction under changing temperature and humidity levels. Prints remain crisp over time.

- Affordability: MDF is one of the most budget-friendly wood materials. Large printed panels can be created for less compared to natural wood or composites.

- Customization: MDF can be cut, routed, and machined into limitless shapes and sizes. Unique printed designs are simple to achieve.

- Strength: While not as strong as solid wood, MDF has good compressive strength and impact resistance for signage and décor applications.

Applications of Printed MDF

Creators and businesses use printed MDF in many innovative ways:

- Retail displays and signage

- Wall art and murals

- Event backdrops and photography backdrops

- Trade show exhibits and kiosks

- Restaurant menus and tabletop décor

- Cabinetrypanels and doors

- Furniture accents like headboards

- Packaging prototypes

- 3D display pieces with printed and CNC cut shapes

On average, a full-color 4’ x 8’ printed MDF panel costs $100-$500 depending on ink coverage and resolution. For creatives, MDF offers an affordable way to make high-impact designs compared to other print materials.

How to Laser Cut and UV Print MDF

Printing on MDF is a straightforward process using a UV flatbed printer.

Step 1: Design and Cut the MDF

Create your design in design software like Adobe Illustrator. Output a vector file in .DXF format and use a CO2 laser cutter to cut the MDF into the desired shapes. Laser cutting prior to printing allows for perfect edges and precision routing.

laser cutting mdf board

Step 2: Prepare the Surface

We need to paint the MDF board before printing. This is because MDF can absorb ink and swell if we print directly onto its bare surface.

The type of paint to use is a wood paint that is white in color. This will act as both a sealer and a white base for the printing.

Use a brush to apply the paint with long, even strokes to coat the surface. Be sure to also paint the edges of the board. The edges is burnt black after laser cutting, so painting them white helps the finished product look cleaner.

Allow at least 2 hours for the paint to fully dry before proceeding with any printing. The drying time will ensure the paint is no longer tacky or wet when you apply the inks for printing.

paint the mdf board with water-based paint as a sealer

Step 3: Load the File and Print

load the painted MDF board on the vacuum suction table, make sure it's flat, and start printing. Note: if the MDF substrate you print is thin, like 3mm, it may swell under the UV light and hit the print heads.

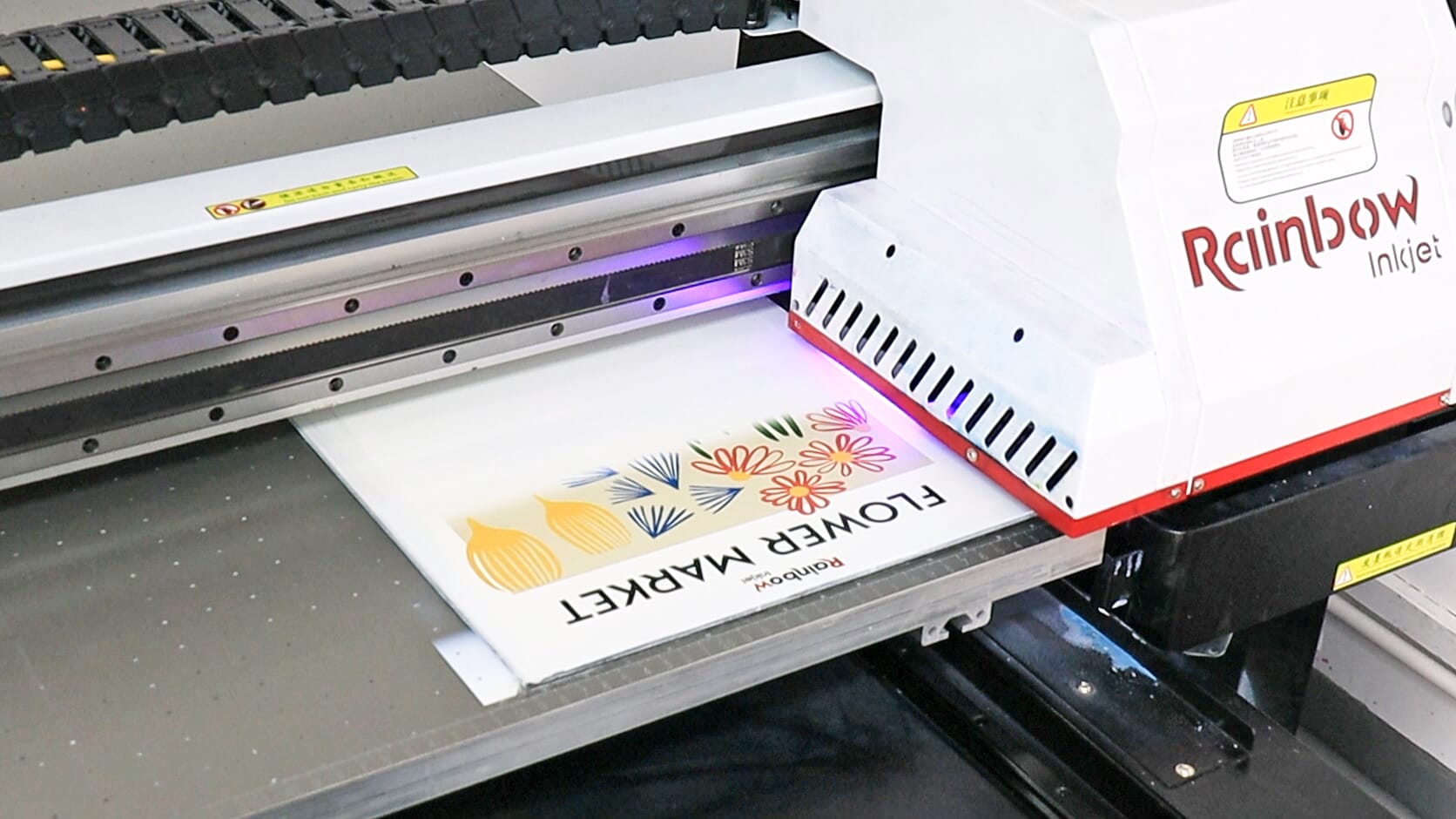

uv printing mdf board 2_
