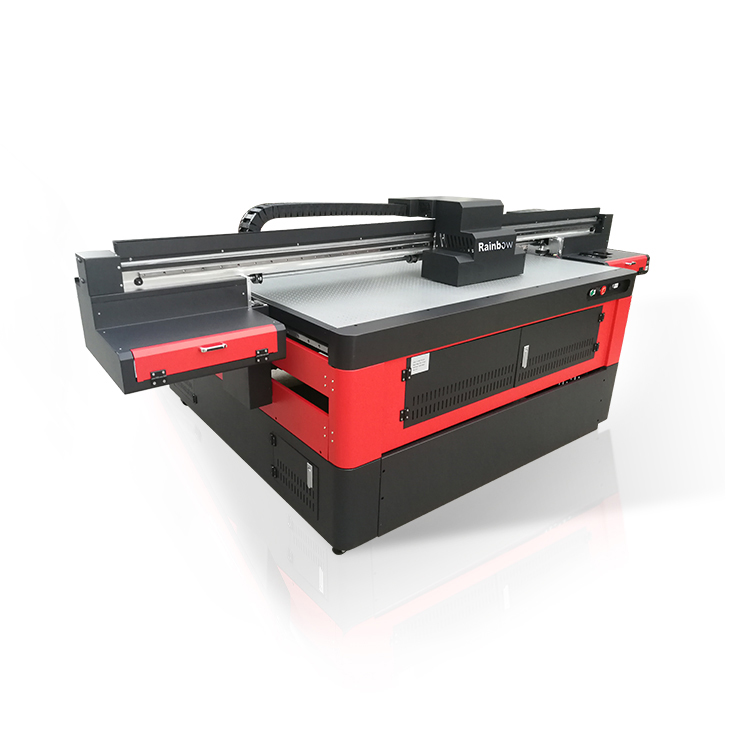

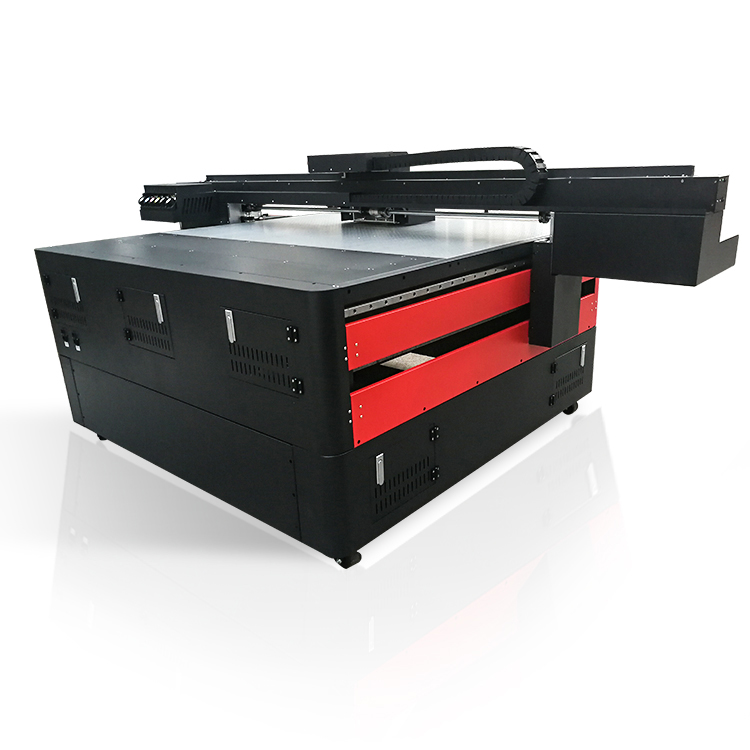

RB-1016 A0 Large Size Industrial UV Flatbed Printer

RB-1016 A0 UV flatbed printer can print on rotary and flat material with all color just by one printer. It can print CMYK, White and Varnish at the same time. The Max Printing Size is 160*100cm.

Model	RB-1016 A0 UV Flatbed Printer
Printhead Number	Three DX10/4720 Print Heads
Max Printing	160*100cm
Printing Height	3cm-25cm(Adjustable)
Printing Speed	17 m2/h (720*720DPI)
	12 m2/h (720*1440DPI)
	8 m2/h (1440*1440DPI)
Optional Printing Color	CMYK+White+Varnish
Maximum Resolution	720*4320DPI
Printing Materials	Plastic, Acrylic, Wood, Ceramic Tile, Glass, Leather, Metal, Phone Case etc.
Printing Software	Maintop/ Photoprint
Picture Mode	PSD/ TIFF/ BMP/ EPS/ JPG
Working Environment	Temperature 25-30℃; Humidity 40%~60%
Computer System	Windows 7/Window 8/Window 10
Machine Size	2.8*1.66*1.38m
Date Interface	USB3.0 High Speed Interface Transfer System
Power	50-60Hz, 1000-1500W
Package Size	2.92*1.8*1.22m
Machine Weight	Net.530KG/Gross.630KG
RB-1016 UV Printer Igus Belt			Ink Alarm System		Water-cooled Circulation System
Well protected lines and water pipes, no deformation for decades using.			Rainbow newest version updated with 500ML big tank for cyan, magenta, yellow,black,white and varnish; The white ink circulation system work constantly keep white ink from sediment and last the lifespan of print head. Besides, it has ink-alarming system which will mention you to add ink if the ink is in shortage.		The system ensures that the LED lamp maintains a constant temperature,extending the LED lamp to 50,000 hours, avoiding high temperature hurt.
Rotary Printing for Bottle Mugs			Quick Control Buttons		Vacuum adsorption platform
3Pcs Epson DX10/4720 heads, can print CMYK+White+Varnish inks together.			It's more stable for printing with size 160*100cm and 25cm height.		For print both soft and hard materials. solid enough for undertake maximum 100kg weight.
Rotary Printing for Bottle Mugs			Quick Control Buttons		Firm Ball Screw
Bigger size rotary printing(both mugs and bottles), driven by an indepentment motor, which makes the printing process more stable and get high resolution.			Emergency Stop Button+Fan Button+Rotary Switch. It's very easy to operate.		Imported stainless steel silent rail from Japan. Long working hours, anti-deformation, anti-oxidation, corrosion resistance.
